SKU#
LE484-L1-V1-5-D
Description
LE484 Series: Class I, Div 2 Booth Fixture w/60 Degree TIR Optic Light Fixture
Product Overview

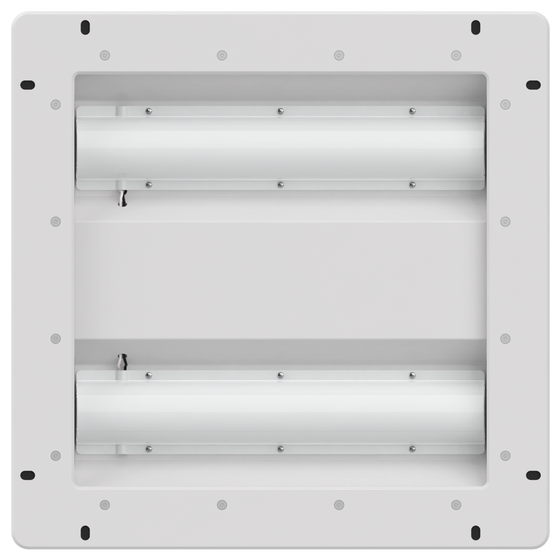

The LE484 is a new approach to booth lighting. It is a lightweight, recessed mount, LED paint booth luminaire. The LE484 utilizes LED technology and redefines how booth lighting is done. It is made of a cast aluminum housing with 60° optics with dimming capabilities.
Class I Div 2, Class II Div 1 and Div 2, recess mount 9070 lumens, 120-277 volt, 5000k cct, with 60 degree TIR optic
Features
Silicone-free gaskets
0-10v or DALI Dimming
Thin, Low-Profile Design
CRI > 90, R9>50
Construction
Copper Free Cast Aluminum Housing
Impact Resistant Glass
60° TIR Optic
Powder Coat White Finish
8 Ft. Wire Whip
Electrical
120-277V & 347-480V, 50/60Hz (0-10V Dimming)
120-277V, 50/60Hz (DALI Dimming)
Through Wiring Rated
Certifications / Ratings
CI D2 Grps A,B,C,D
CII D1 Grps E,F,G
CII D2 Grps F,G
IP67
T5 (100°C / 212°F)
NEMA 4X
UL1598 Wet/Damp, Paint Spray
CSA C22.2 No. 137
CSA C22.2 No. 250
-25°C to 55°C Ambient Rating (Non IC)
-25°C to 45°C Ambient Rating (IC)
FCC Certified
